Evolution in the name of Victory

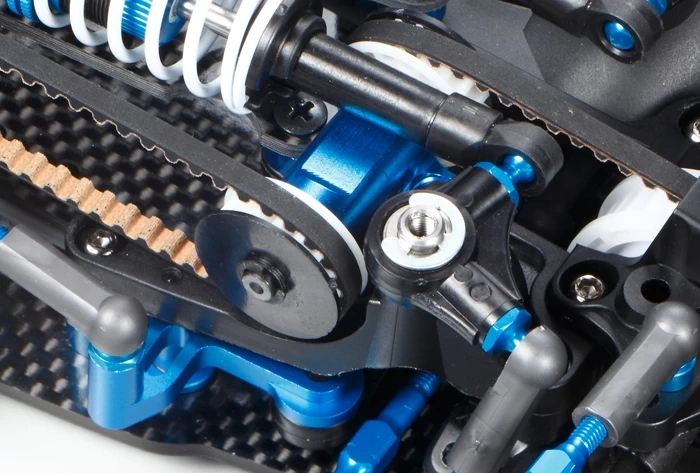

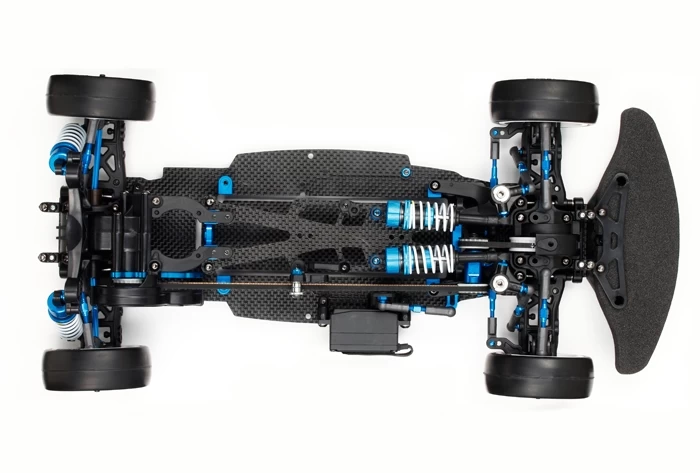

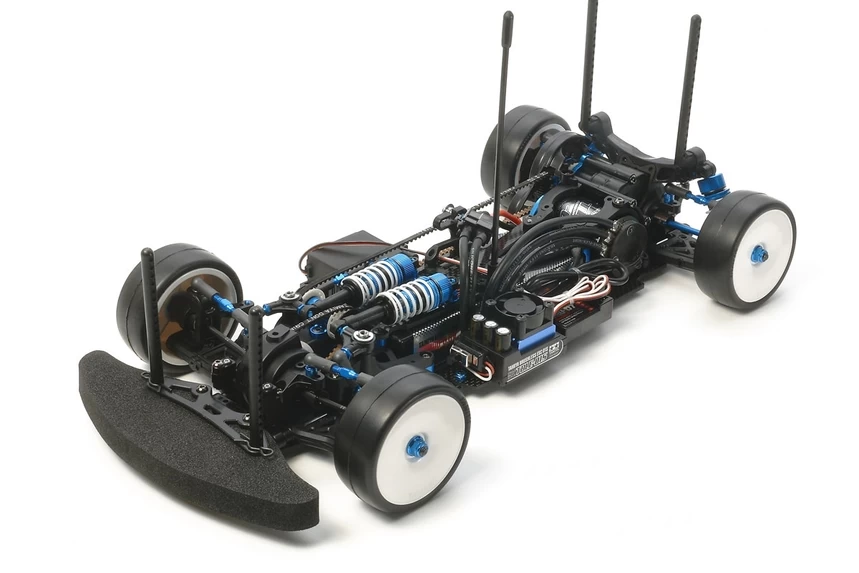

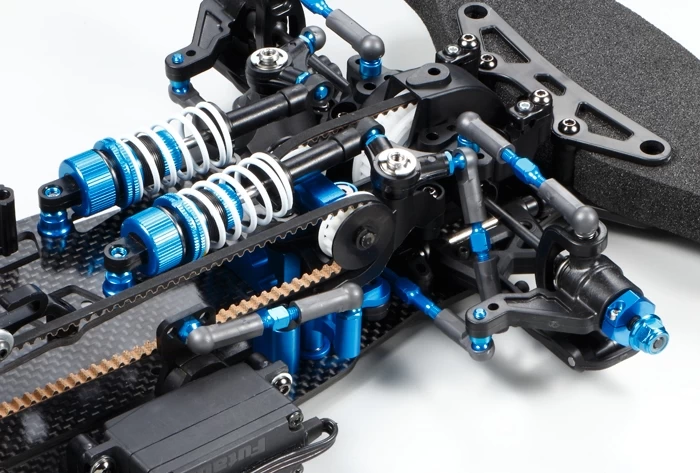

The 4WD TA06 MS chassis features the battery along its centerline and is powered by a distinctive Dual-Drive system which employs belt-driven front and gear-driven rear wheels. The TA06 MS improves on the original TA06 by adding a carbon double deck to strengthen the chassis and give it better handling at high speed. The mechanism deck and battery plate are also made from carbon. The aluminum pulley mount gives greater drivetrain efficiency and is matched with front and center direct pulleys. The front of the car also receives double-cardan joint shafts. It features refined details including the optimized damper angle.
Featured Components
Special Parts
●2.5mm-thick Carbon Lower Deck ●2.5mm-thick Carbon Upper Deck ●2.0mm-thick Carbon Mechanism Deck ●2.5mm-thick Carbon Battery Plate ●Aluminum Front Pulley Mount ●Aluminum Steering Arms
Option Parts
●Double Cardan Joint Shafts (x2) ●TRF Special Dampers (Hard Black Coating) ●Hi-Torque Servo Saver (Black) ●TA06 Front Direct Coupling (39T) ●Clamp-Type Aluminum Wheel Hubs (4mm thickness) ●3x42mm Aluminum Turnbuckle Shaft ●3x32mm Aluminum Turnbuckle Shaft ●3x23mm Aluminum Turnbuckle Shaft ●TRF416 Low-Friction Drive Belt (Rear) ●5mm Aluminum Ball Connectors (Blue) ●Universal Shaft ●Low-Friction Belt ●Full Ball Bearings
●Length: 371mm ●Width: 187mm ●Wheelbase: 257mm ●Tread (F/R): 165mm ●Carbon Double Deck Frame ●Front Belt-Driven and Rear Gear-Driven 4WD ●Front/Center Direct, Rear Gear Differential Unit ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●TRF Dampers ●Gear Ratio ＝ 6.41:1(when using kit-standard 68T Spur and 23T Pinion) ●Motor not included ●Radio gear, 7.2volt battery, body set, and electronic speed controller (sold separately)
