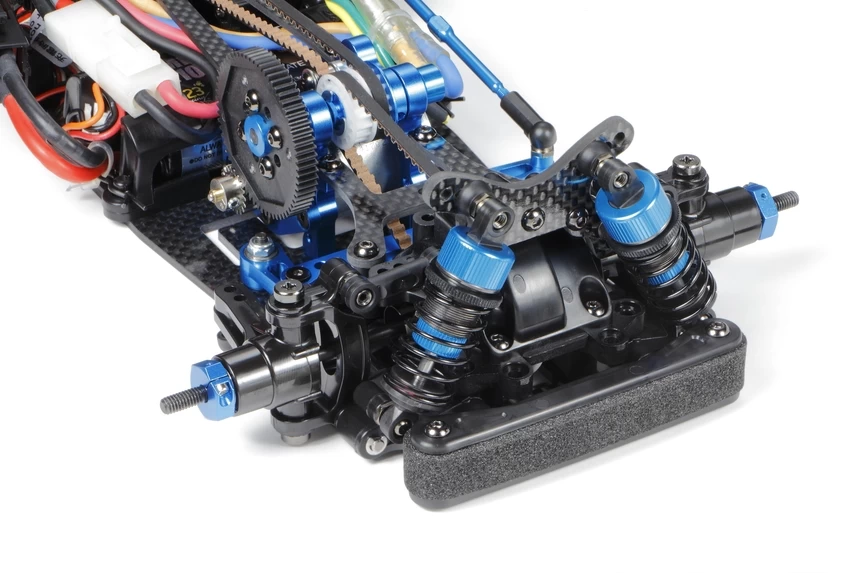

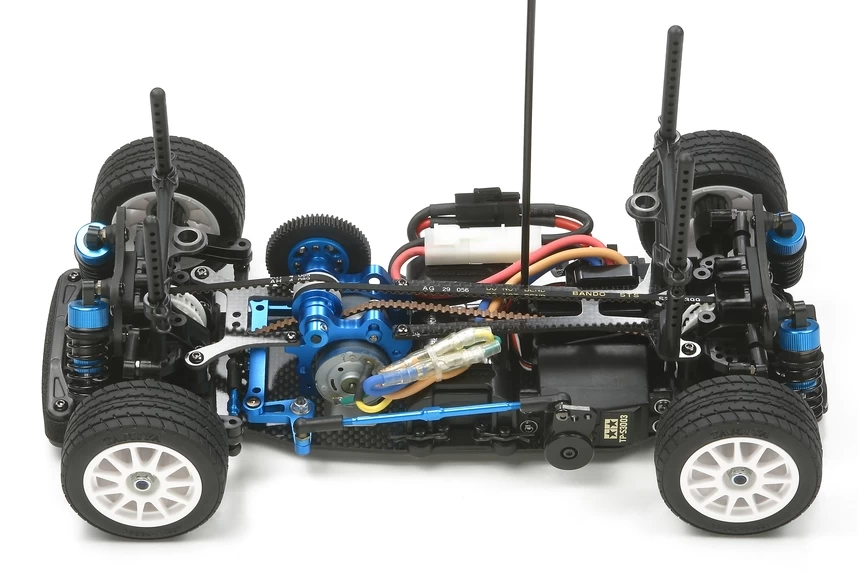

The Tamiya TA05 chassis has been a favorite mid-level 4WD touring car platform since 2005. Tamiya has incorporated its proven components into a new, unique 1/12 scale R/C chassis design. This chassis combines the TA05 2-belt driven 4WD drivetrain with a 210mm wheelbase (overall chassis length: 292mm) and has a carbon-fiber double deck layout. It also features an aluminum motor mount which holds the front mid-ship motor and spur gear. The TA05 gearboxes are equipped with oil-filled gear differential units (37T) and the suspension uses M-chassis components such as suspension arms, universal shafts, and aluminum dampers. Separate suspension mounts are used to enable easy suspension toe-angle adjustments as seen in many of Tamiya”s touring car platforms. The steering setup features durable aluminum components for precise control. This chassis is designed for use with Item 55105 Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) Note: Battery is not imported into the USA. See below for substitute compatible battery packs. (TBA) The TA-05 M will be compatible with existing M-Chassis bodies that meet the 210mm wheelbase.
- Adjustable Gear Ratio
yes
- Bearings
shielded ball bearing
- Chassis Material
carbon fiber plate
- Construction Type
assembly kit
- Differential Type
gear
- Drive Type
belt
- Led Light Buckets
no
- Led Lights
no
- Motor
380-brushed type
- Required To Complete
7.2 battery & charger
- Scale
1/12
- Shock Damper
oil-filled damper
- Special Feature 1
M-chassis suspension arms and front uprights
- Special Feature 10
Item 54267 M-05 & M-06 Aluminum Rear Upright (2.0?)
- Special Feature 2
TA05 oil-filled gear differential units allow a range of diff settings
- Special Feature 3
Item 51237 Suzuki Swift Super 1600 Wheels (4pcs.) are included. Tires are sold separately
- Special Feature 4
Blue-anodized aluminum motor and center pulley mount holds 380-sized motor
- Special Feature 5
This chassis is compatible with current M-chassis bodies (short wheelbase) such as Item 50795 1/10 R/C Mini Cooper Racing Body Parts Set
- Special Feature 6
2.25mm thick lower and 2mm thick 2-piece upper deck
- Special Feature 7
The following existing option parts are available for customization:
- Special Feature 8
Item 53833 TA05 Front One-Way Unit OR Item 53877 TA05 Front Direct Coupling
- Special Feature 9
Item 54212 M-Chassis 3x37mm Titanium Coated Suspension Shafts (2pcs.)
- Suspension
fully independent double wishbone
- Terrain Use
on-road
