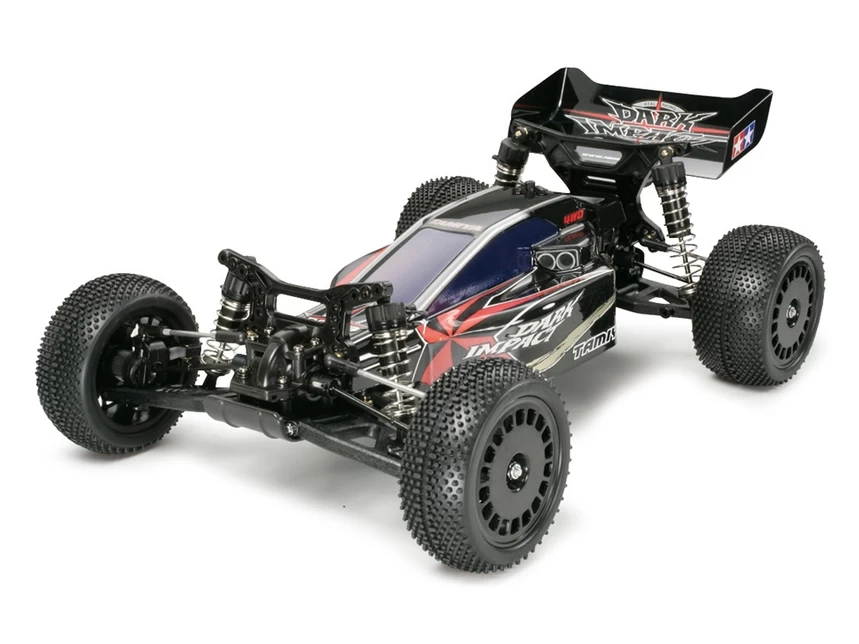

This 1/10 scale 4WD buggy is specially designed to excel in off-road buggy performance driving. It features a mid-rear mounted motor and longitudinally mounted battery for optimum balance for jumping. Battery is inserted through the bottom of the chassis, eliminating need to remove body, which makes routine maintenance easy and quick. High performance shaft drive 4WD combines with suspension system featuring extra-long suspension arms for improved stability and off-road handling.
DF-03: Refined Shaft-Drive 4WD Chassis

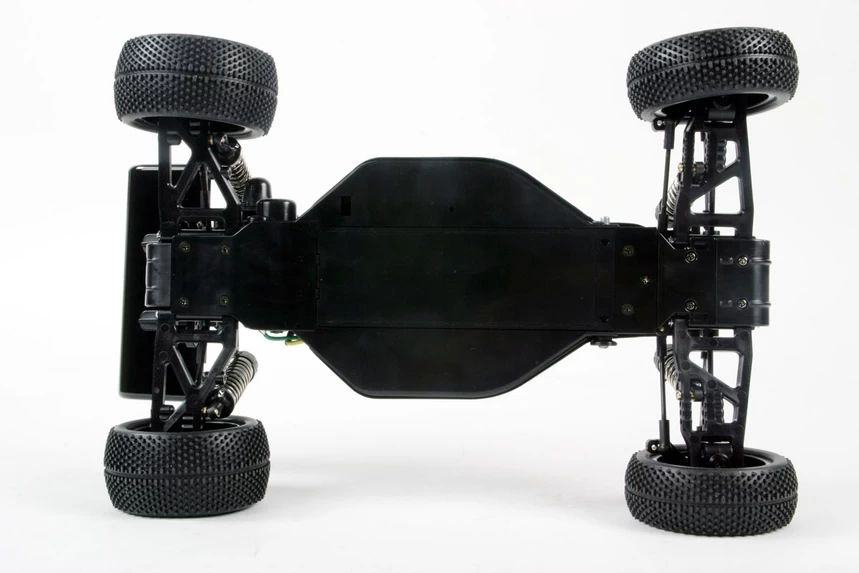

Durable monocoque bathtub frame sees the heavy battery and R/C mechanism components mounted low and central for the best vehicle balance. Even the oil dampers are located within the wheelbase for greater stability and cornering performance. Compact gearboxes are equipped with ball differentials, and the propeller shaft directly links to the front bevel gear to decrease power loss during transmission. 4-wheel double wishbone suspension with long suspension arms provides excellent shock absorption, and a variety of attachment positions gives the driver many options when tuning.
• High performance 1/10 4WD buggy chassis designed for off-road running.
• 4-wheel independent double wishbone suspension features CVA oil dampers and extra-long suspension arms for improved stability and handling
• Includes sealed diff gearbox indispensable for off-road running
• Features full ball bearings
• Electronic Speed Controller (Not Included)
• Includes 540 type motor
• Newly designed off-road tires and wheels featured larger diameter and width, and new tread pattern designed for excellent running and control on hard dirt tracks
• Tires: High Density Spike Tires K (4WD/Front, 62/25), High Density Spike Tires K (Rear, 62/35)
• Wheels: Large Dish Wheels (4WD/Front, 62/25), Large Dish Wheels (Rear 62/35)
• 2.94 internal gear ratio.
• Requires: 2-channel radio, steering servo, ESC, 7.2volt battery & compatible charger, and Tamiya PS paint.
