The Pure Thrill of 2WD

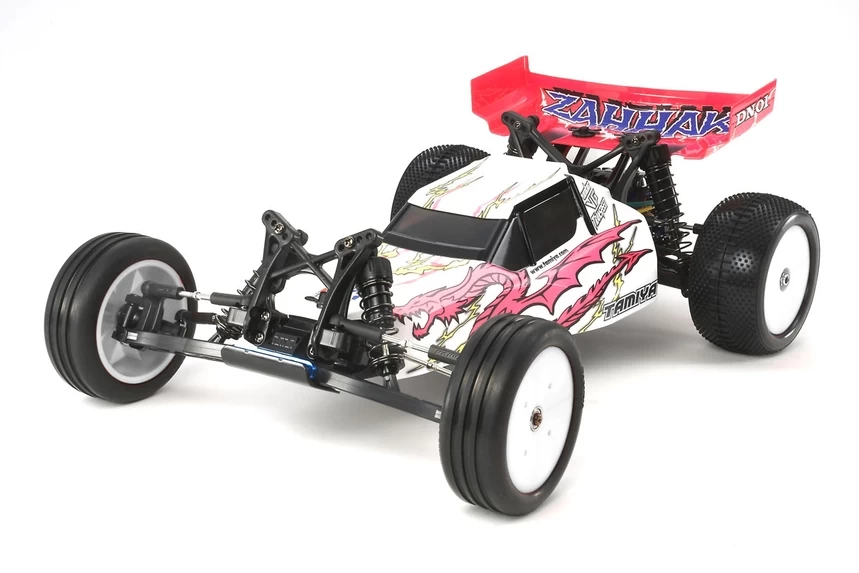

This is a 1/10 scale R/C assembly kit of the Zahhak, a 2WD buggy which was developed from the expert-level TRF201 buggy. The chassis features the same basic layout as the TRF201, including a longitudinal battery position, 4-wheel double wishbone suspension with long-span suspension arms, and a compact rear-mounted gearbox. In addition, the kit comes with CVA shock units and separated-type diff joints which contribute to its superb off-road performance. Front wide grooved and rear dual block pattern tires are mounted on fluorescent pink wheels*. A newly designed body and rear wing completes this high-potential 2WD racing buggy.

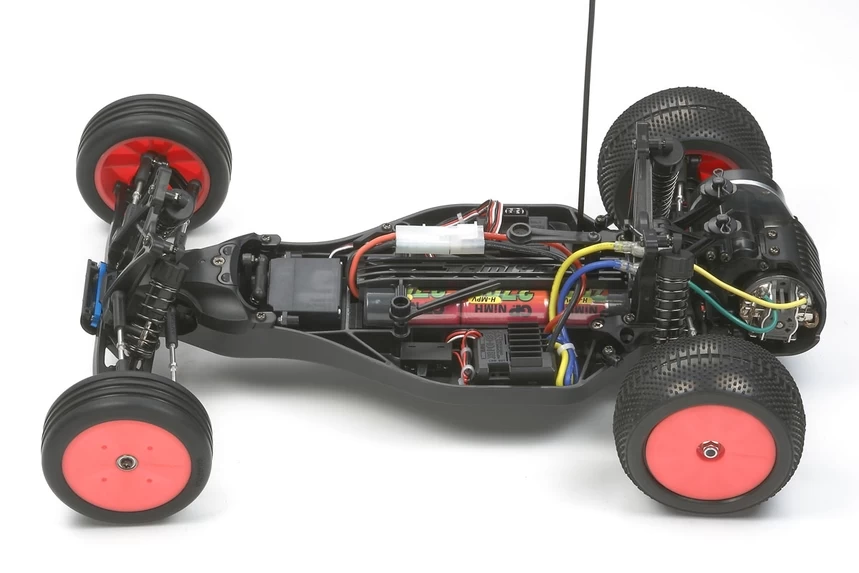

Well-Balanced DN-01 Chassis

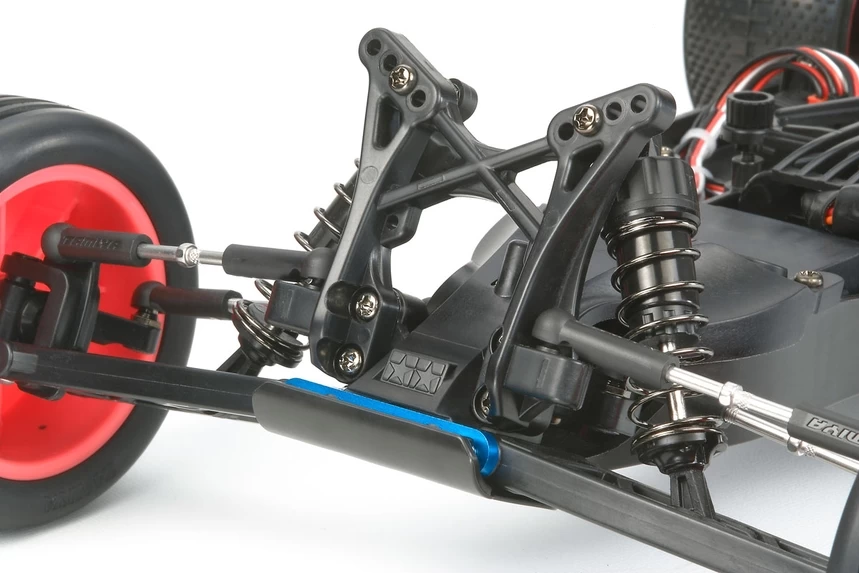

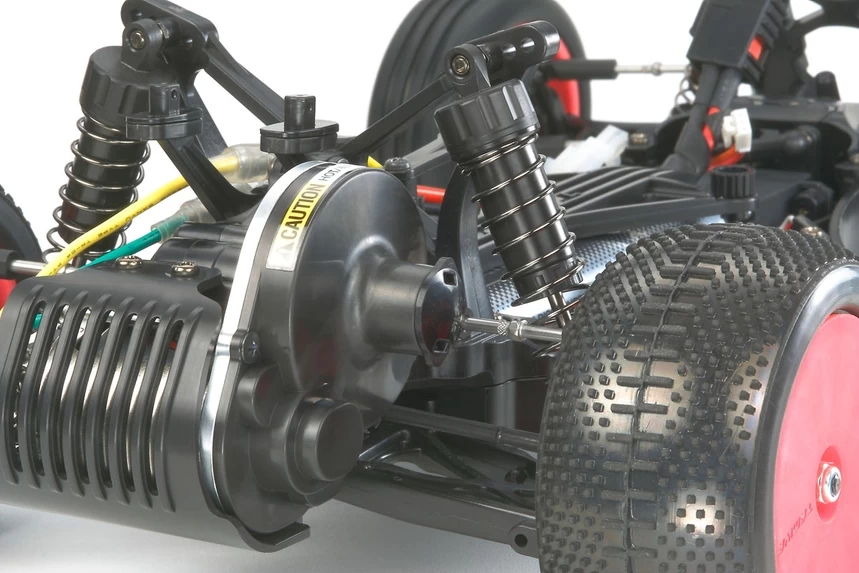

The 2WD DN-01 has a longitudinal battery position with R/C units placed on either side for optimum balance. Flat chassis underside enables superb skid characteristics. 4-wheel double wishbone suspension is coupled with long-span suspension arms, CVA shock units, and an aluminum front suspension mount. Monocoque front chassis section features a steering crank with built-in servo saver. In addition, the drivetrain features full ball bearings and the fully-enclosed gearbox is equipped with a ball differential. Further upgrading to TRF201 specifications is possible by installing separately available Hop-Up Option parts.
●Length: 382mm, Width: 249mm, Height: 136mm, Weight: Approx. 910g (not including motor, pinion, R/C units, battery pack) ●Wheelbase: 272mm ●Tread: Front=249mm, Rear=244mm ●Bathtub Type Chassis Frame ●Rear-Wheel Drive ●Front & Rear Double Wishbone Suspension ●CVA Shock Units ●Tire Width/Diameter: Front=19/60mm, Rear=35/62mm ●Gear Ratio=8.22:1~10.27:1 ●Motor not included ●Requires Electronic Speed Controller (sold separately)
- Adjustable Gear Ratio
Yes
- Bearings
Shielded ball bearing
- Body Material
Clear Polycarbonate
- Body Stickers
Included
- Chassis Material
FRP Fiberglass Reinforced Plastic
- Chassis Type
DN-01
- Construction Type
Assembly Kit
- Differential Type
Ball Pressure Plate
- Drive Type
2WD
- Electronic Speed Control (esc)
Sold Separately
- Led Light Buckets
no
- Motor
540-brushed type
- Required To Complete
2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.
- Scale
1/10
- Shock Damper
CVA Oil-filled damper
- Special Feature 5
Sticker sheet and window paint masking seals included
- Suspension
Fully Independent Double Wishbone
- Terrain Use
Off-Road
